This new year is the final year of Kilauea volcano projects funded by the Additional Supplemental Appropriations for Disaster Relief Act of 2019 (H.R. 2157). This “Volcano Watch” article is about a deep study of subsurface conductivity beneath Kilauea volcano that will reveal its subsurface magmatic plumbing.
The project started within Hawaii Volcanoes National Park last summer and will be completed over the entire volcano this year.
The technique has a catchy name — magnetotelluric (MT) sounding. It’s a passive geophysical technique that measures tiny perturbations in the natural Earth magnetic and electric (telluric) fields to map out how well the rocks beneath our feet conduct electricity.
Last year, the team was successful in getting high-quality data at about 40 sites within HVNP. This year, the team of geophysicists from the USGS Denver office will return in February to collect data at another 65 sites in the Puna District along Kilauea’s East Rift Zone. The final phase of the work will occur in May-June when the Denver crew will collect any remaining sites both inside and outside of the National Park.
The MT sounding method relies upon natural electromagnetic energy from a combination of solar winds (continuous flow of charged particles from the Sun) interacting with the Earth’s magnetic field and global lighting strikes. Electromagnetic energy with periods (inverse of frequency) between 1 millisecond (1000 cycles per second) to 4,000 seconds (21.6 cycles per day) are recorded at each site. The longer-period data provides a measure of electrical conductivity at greater depths beneath the ground surface.
Why measure electrical conductivity?
Subsurface magma, as well as the surrounding hydrothermal systems, conducts electricity very well whereas cooled and solidified lava flows don’t. The dense network of MT sites on Kilauea will collect data that we’ll use to map the subsurface locations of magma in three dimensions. Areas of high conductivity beneath the surface will show us where magma is located beneath Kilauea volcano including the summit magma reservoir and the pathways from there to Kilauea’s East and Southwest Rift Zones.

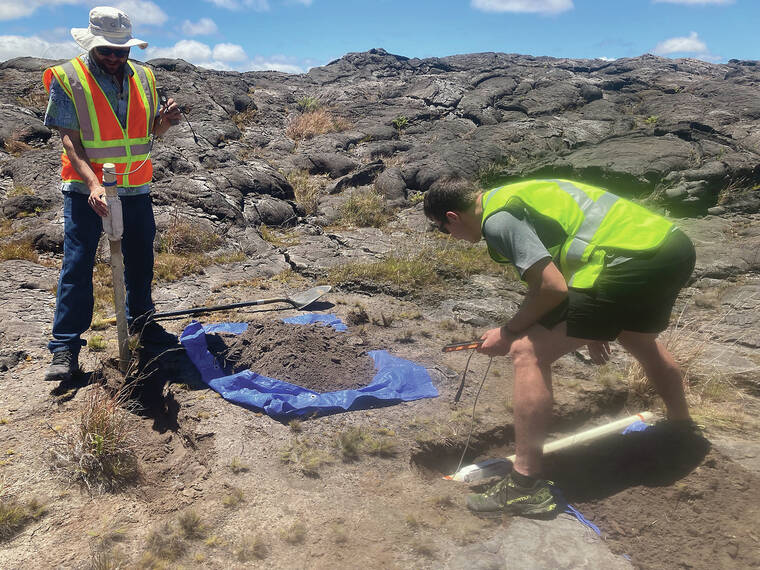

The field work will involve setting up sensors to measure the Earth’s magnetic and electric fields at each site. To get information from the greatest depths, data must be acquired continuously for 1-5 days.
A 2002 MT study of the summit and upper East Rift Zone of Kilauea volcano showed subsurface conductors in three distinct areas within 3 km (2 mi) of the surface. One was beneath Kilauea caldera, a second was 1.5 km (1 mi) south of the caldera, and a third was beneath and to the south of Pu‘u‘o‘o on the middle East Rift Zone.
The conductive zones south of the summit and Pu‘u‘o‘o were within fault zones that may have held electrically conductive saline or hydrothermal fluids. The conductive bodies below the summit and Pu‘u‘o‘o likely represent the magma conduit from the summit reservoir to the East Rift Zone that fed the ongoing eruption in 2002.
The 2022-2023 MT project will cover almost the entire surface of Kilauea volcano and allow us to see more detail about the subsurface plumbing of the Southwest Rift Zone and the lower East Rift Zone that fed the 2018 Puna eruption. These data, combined with the data from an airborne electromagnetic and magnetic survey flown last year should give us a very detailed ‘CAT scan’ of the volcano. We hope that the subsurface plumbing that fed the 2018 Puna eruption will be mapped in detail.
Over February, and May-June this year, you might see USGS scientists installing these MT sites across Kilauea volcano. We appreciate Hawaii Volcanoes National Park, Kamehameha Schools/Bishop Estate, the State of Hawaii Department of Land and Natural Resources, the Office of Hawaiian Affairs, and Kapoho Land and Development Company, and various other land owners who have granted us permission to access these locations. More details and updates on the progress of the Kilauea subsurface conductivity project can be found here https://www.usgs.gov/supplemental-appropriations-for-disaster-recovery-activities/science/2019-Kilauea-disaster.
Volcano activity updates
Kilauea is erupting. Its USGS Volcano Alert level is at WATCH. Kilauea updates are issued daily.
Kilauea volcano’s summit eruption in Halema‘uma‘u crater within Hawai‘i Volcanoes National Park continues. Activity is concentrated in a large lava lake in the eastern half of the crater, as well as a smaller lake to the west, in the basin of the 2021–2022 lava lake. Summit tilt has shown gradual deflation over the past week with at least one deflation/inflation event. Summit earthquake activity remains low and eruptive tremor (a signal associated with fluid movement) is present. A sulfur dioxide emission rate of 3,000 tonnes per day was measured on January 20. For Kilauea monitoring data, see https://www.usgs.gov/volcanoes/Kilauea/past-week-monitoring-data-Kilauea.
Mauna Loa is not erupting. Its USGS Volcano Alert Level is at ADVISORY. Mauna Loa updates are issued weekly on Thursdays.
Webcams show no signs of activity on Mauna Loa. Seismicity remains low. Deformation rates show inflation somewhat above background levels, but this is not uncommon following eruptions. Sulfur dioxide (SO2) emission rates are at background levels. For Mauna Loa monitoring data, see: https://www.usgs.gov/volcanoes/mauna-loa/monitoring-data.
There were three earthquakes with 3 or more felt reports in the Hawaiian Islands during the past week: a M3.2 earthquake 9 km (5 mi) E of Pahala at 31 km (19 mi) depth on Jan. 30 at 10:02 p.m. HST, a M3.1 earthquake km (5 mi) E of Pahala at 31 km (19 mi) depth on Jan. 30 at 2:57 p.m. HST, and a M2.7 earthquake 3.1 km (1.9 mi) NNE of Holualoa, Hawaii, United States at 13 km (8 mi) depth on Jan. 27 at 5:39 a.m. HST.
HVO continues to closely monitor the ongoing eruption at Kilauea, and Mauna Loa.
Please visit HVO’s website for past Volcano Watch articles, Kilauea and Mauna Loa updates, volcano photos, maps, recent earthquake info, and more. Email questions to askHVO@usgs.gov.
Volcano Watch is a weekly article and activity update written by U.S. Geological Survey Hawaiian Volcano Observatory scientists and affiliates.
